上海色のデジタル製造者Co.、株式会社。
専門のデジタル織物の焼付装置及び関連した材料大将Supplier
 |
| 起源の場所: | 中国上海 |
| ブランド名: | SAER |
| 証明: | CE Certification |
| モデル番号: | CSR2200 |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 非給与の木製の箱 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 月額50セット |
| 適切なファブリックタイプ: | ニットまたは織り綿、リネン、シルク、ウール、化学繊維、ナイロン。オックスフォードなど | メディア処理: | ロールツーロール +オートフィード +オートロールアップ |
|---|---|---|---|
| インクタイプ: | 昇華インク、顔料インク | 色とページ: | マルチカラー |
| 使用法: | 屋内および屋外広告分野 | 互換性のあるOS: | Windows 7とWindows 10 |
| ソフウェア: | オニキス | ヒーター電源: | 6kw |
| 自動グレード: | 自動 | 電圧: | AC100-120V/AC220-240V |
| ハイライト: | digital fabric printing machine 4 heads,sublimation printer for textiles,inkjet textile printer with warranty |
||

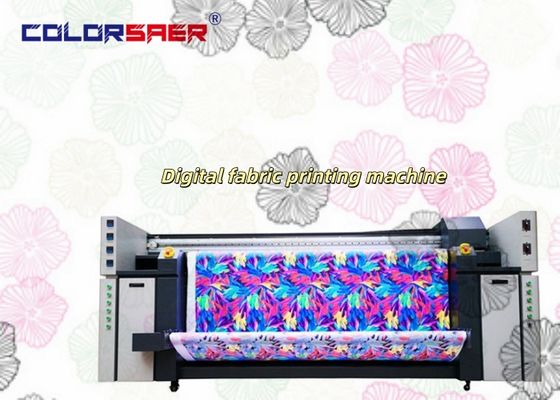

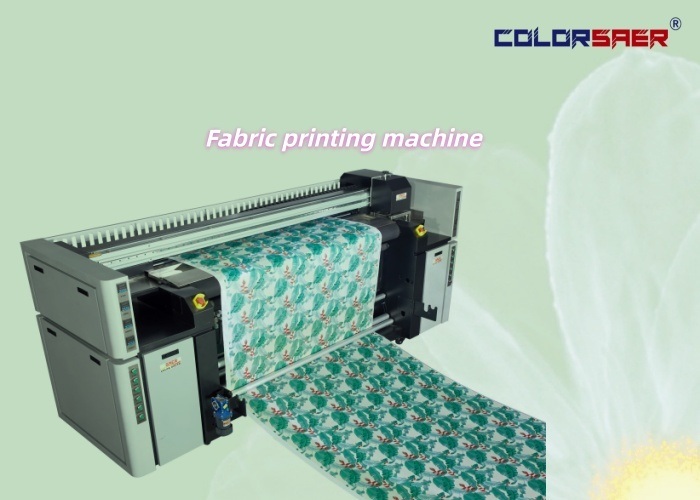

Product name:Textile Printer Digital Fabric Printing Machine Sublimation Printer Good Manufacturer 4 Heads Inkjet Printer
Machine working speed :
| Printing resolution and speed | Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Advantages:
1. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
Application industry:
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
